Dry type transformer.
Norms: According to EN 61558-2-13.
Reversible Voltages 125/220 VAC.
Windings: Class H (180º).
Insulation: Class B (130º).
Winding without galvanic isolation.
Frequency: 50-60 Hz.
Degree of protection: IP-20.
Made with protective metal covers painted with epoxy resin.
Not resistant to short-circuits.
Core protected against corrosion.

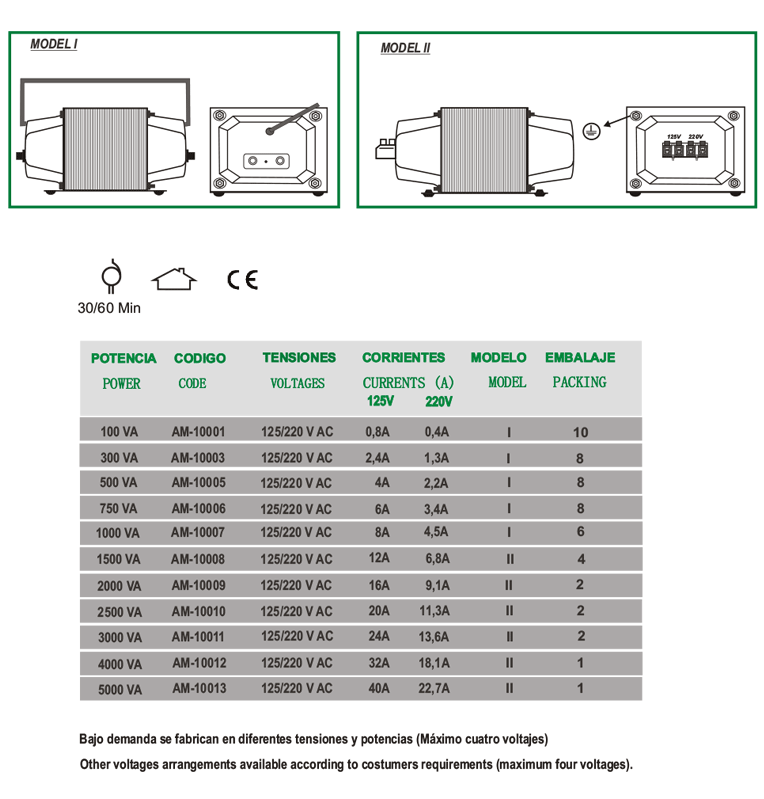

Models from 300 VA to 1.000 VA with metal handle.
Models from 1.500 VA to 5.000 VA are manufactured with screw connection terminals.
*Under demand, they can be manufactured in other powers and different voltages of primary and secondary.
*All specifications listed in this brochure are subject to change without notice.
