SAFETY TRANSFORMERS FOR SWIMMING POOL TRANSFORMER IP-65

SERIE TP-16
SAFETY TRANSFORMER FOR
SWIMMING POOL LIGHTING
IP-65

image_pdf

The PHONOVOX safety transformers are destined for feeding submerged spotlights for the illumination of swimming pools, fountains … etc. TP-16 Series are safety transformers with IP-65 protection rate that allows their installation both indoors and outdoors.

Description

  • Safety transformer
  • Manufactured according to the standard 61558-2-6
  • Transformer with circuit separation.
  • Isolating transformers for circuit separation.
  • Protected against overloads and overheat by a built in thermal protector with self resetting system.
  • Fully encapsulated in polyurethane resin.
  • Polyamide box with fiberglass.
  • Degree of Protection: IP65
  • Class II.
  • Compression glands IP-65
  • Temperature: 40 ºC.
  • Insulation Class B (130 ºC).
  • Windings: Class H (180 ºC).
  • Dielectric Strenght ( Primary/Secondary): 3.500V.
  • Dielectric Strenght ( Primary/ Mass): 1.800V.
  • Galvanic isolation between primary and secondary.
  • Frequency: 50/60 Hz.
  • Primary Voltage: 230V AC
  • Secondary Voltage: 12V AC or 12-13-14V AC ( Voltage adjustments in the primary)

 * Different powers and other voltages in primary and/ or secondary available under request.
*All specifications listed in this brochure are subject to change without notice

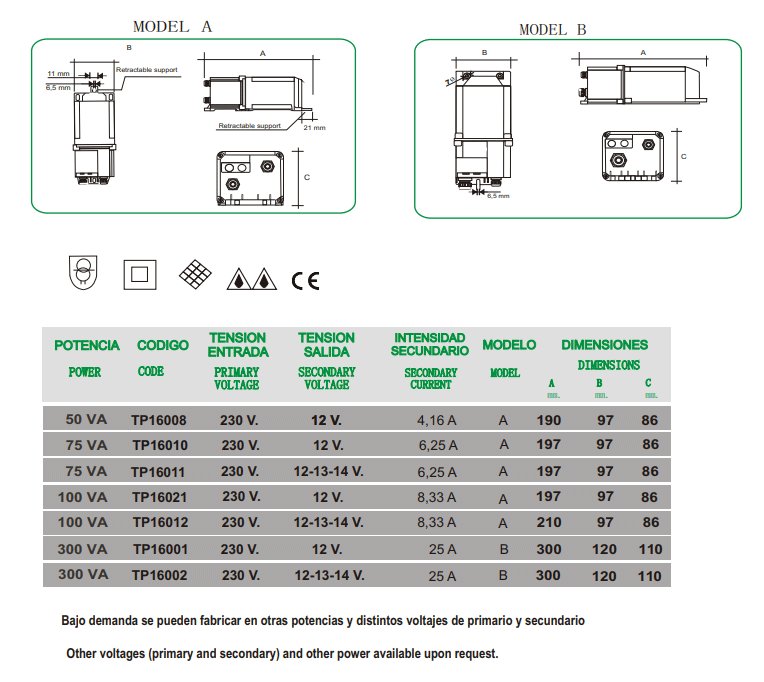

Technical specifications

Technical specifications
